Unlocking the Potential of Grinding Machines: Your Ultimate Guide

Unlocking the Potential of Grinding Machines: Your Ultimate Guide
Facebook
Twitter
Reddit
LinkedIn

Grinding machines, pivotal in metalworking and manufacturing, utilize abrasive wheels to achieve surface finish and dimensional accuracy on workpieces. The advancement in CNC (Computer Numerical Control) technology has significantly enhanced the versatility and precision of these machines, enabling complex grinding tasks to be performed with greater efficiency and repeatability. This section will explore the various types of grinding machines, such as surface, cylindrical, and tool and cutter grinders, each designed for specific applications, and the technological innovations that have expanded their capabilities. Understanding the operational parameters, including speed, feed rate, and abrasive materials, is crucial for optimizing the grinding process, leading to improved productivity and reduced operational costs.

What are the Main Types of Grinding Machines?

Exploring the Variety: From Surface to Cylindrical Grinders

Surface Grinders

Used mainly for flat surfaces, surface grinders enable you to achieve a smooth finish and high tolerance. The workpiece is held on a table that moves back and forth while the wheel travels up and down along its vertical axis. Among the factors that affect how well this machine works are what materials comprise its abrasive wheel, how fast or slow the table moves, and at what pace feed occurs between wheels. For example: picking aluminum oxide wheels are good general-purpose ones, but cubic boron nitride should be used when grinding hard stuff.

Cylindrical Grinders

These machines are designed for external or internal machining of cylindrical parts. They can be used to finish taper, face and contour such parts with utmost precision. The necessary operational parameters in cylindrical grinding include workpiece rotation speed as well as that of the wheel itself, type of abrasive material employed on it, dressing methods applied in order to keep sharpness and shape intact throughout use, etcetera. One must ensure these selections match the hardness levels exhibited by materials being worked on alongside desired finishes.

These factors should be understood and controlled because they unleash the full potential of any grinder, hence improving accuracy during production processes while attaining near-perfect surfaces on workpieces. Each grinder has its own specific use within the manufacturing industry. Thus, there is a need for the correct choice among them, together with operational settings that will enhance performance, efficiency, and product quality improvement opportunities presented by different types of grinders.

The Role of Bench and Angle Grinders in Modern Workshops

Contemporary workshops greatly rely on bench grinders as well as angle grinders because they can multitask and handle various jobs. Bench grinders are very important in a workshop because they help sharpen tools, shape them, and buff or remove rust from metal parts. This is possible due to the fact that these types of grinders can work with different materials accurately, thus helping one keep their tools efficient and long-lasting. On the other hand, what makes angle grinders convenient is their ability to be moved around easily since they are not fixed anywhere; also, they allow for cutting, grinding, and polishing at different angles as well as in hard-to-reach places. If fitted with appropriate accessories, these machines can work on metals like steel sheets or bars but also stones such as granite slabs or concrete walls, which means that without them, many construction sites would come to a standstill. Both bench and angle grinders need to be used strategically if workshop productivity is to be enhanced significantly hence ensuring all tasks are done accurately and quickly too.

How CNC Grinding Machines Revolutionize Precision

Computer numerical control (CNC) grinding machines have revolutionized the precision machining industry. They provide extreme accuracy and efficiency in grinding operations by use of computerized controls. Below are some parameters and factors that demonstrate how CNC grinders transform precision:

  1. Precision and Accuracy: Often, CNC grinding machines can achieve very fine tolerances which may be as low as micrometers. The reason behind this is that such kind of accuracy is required in industries like aerospace where if there is a slight deviation from the required measurements, the whole product might fail.
  2. Consistency and Reproducibility: Machines with numerical controls are able to repeat a grinding process exactly as it was done before because they follow digital programs. This ensures that quality remains uniform across different items during mass production where dimensions also need to be same.
  3. Complexity and Versatility: These types of machinery are capable of executing intricate shapes or patterns which may not be possible manually or even through other means. Additionally, they can handle different materials as well as geometries thereby making them versatile tools for any manufacturing facility.
  4. Speed and Efficiency: The use of CNC grinders has greatly reduced cycle time by automating most tasks involved, thus eliminating manual adjustment needs. This feature becomes more important when working under tight deadlines without compromising on quality due to its high effectiveness in terms of time-saving during production phases.
  5. Reduced Human Error: Grinding processes are prone to errors caused by operators, but this has been taken care of through the automation of these devices. The fact remains that much higher levels of precision can only be realized when human beings do less work since there will always be errors related to handling things personally.
  6. Customization and Flexibility: It is possible to customize software used in controlling a machine for specific materials or finishes whenever necessary with CNC machines.Customers’ needs change over time especially if new designs were introduced therefore manufacturers should be quick enough to respond towards such demands so that they could remain relevant within their respective industries.

In summary, it is evident that CNC grinding machines offer more control and accuracy than manual methods or less sophisticated equipment. This not only improves the quality of finished products but also enables manufacturers to come up with new ideas as well as increase efficiency in different stages of the production process.

Understanding the Grinding Process and Its Applications

Understanding the Grinding Process and Its Applications

Grinding Operations: Shaping Metal and More

Grinding operations are important in metalworking and other industries that process materials. They are the main methods used for shaping, refining, and finishing materials to precise dimensions and surface quality. These procedures involve the use of abrasive wheels, which remove material from a workpiece by force rubbing against it, thus enabling the creation of complex shapes, exact angles, and highly polished surfaces. Grinding can handle various materials, including metals, plastics, ceramics, or composites; therefore, it is an irreplaceable technique in the production of components with tight dimensional tolerances as well as surface finish requirements. Grinding has reached new levels of accuracy and productivity thanks to CNC technology; this allows for manufacturing parts with intricate geometries finished to mirror the smoothness necessary for aerospace applications, among others where high precision is demanded, such as the automotive industry or medical devices sector etc.

From Sharpening Tools to Finishing Surfaces: The Versatility of Grinding

The range of uses for grinding is far beyond what most people think. Just sharpening tools barely scratches the surface. Grinding is key to aerospace components that require unprecedented accuracy, and in the automotive industry, surface finish could mean a lot in terms of performance, among other sectors. It is not only used for keeping cutting edges sharp but also plays an integral role in the final surface preparation of many manufactured products.

Some important factors that determine the capacity of a grinder are:

  • The rate at which material is removed: This will tell you whether or not your grinding process is efficient enough. Higher rates indicate faster removal of materials, thereby improving productivity, but this has to be balanced with increased wear on a grinding wheel.
  • Quality of surface finish: Surface finish must be good quality especially if it affects functionality through aesthetic appearance or microscopic structure at certain industries.
  • Accuracy with respect to dimensions: For tight tolerance machining down to few micrometers, manufacturers have no choice but use grinders because they can achieve that level precision easily thus making them more useful when making parts that fit together perfectly well.
  • Type abrasive used: The type chosen affects how much material gets removed during finishing operation as well as its life span and finish produced after completing work-piece surfaces using it.
  • Wheel speed, feed rate and depth of cut – these three are adjusted accordingly so as to optimize operations balancing between removal rate against desired finish and accuracy during grinding processes management.

In practice, there are various applications of grinders, such as creating components with critical dimensions and finishes or even refurbishing worn-out parts, therefore extending their service life, etc., all depending on specific project requirements dictated by workpiece material selection and required precision levels, among other aims.

Key Components of a Grinding Machine Explained

Key Components of a Grinding Machine Explained

The Critical Role of the Grinding Wheel

In the grinding process, the grinding wheel is basically a primary tool used to take away materials. The importance of this tool cannot be underestimated since it directly determines the productivity, precision, and quality of finished products. Such factors as selection of abrasive materials, size of grain used, bonding method adopted, and structure of wheels itself are critical in determining their ability to cut surfaces and finish them off nicely while still being able to last longer during use. Not only does a good choice of a grinding wheel increase efficiency by enabling higher rates of removal, but it also lowers chances for damaging workpieces, thereby guaranteeing desired dimensional accuracy plus surface integrity. Hence, one must choose an appropriate grinding wheel based on specific needs required by any given task so as to achieve the best results during grinding.

Navigating the Complexities of CNC Controls in Grinding

CNC (Computer Numerical Control) systems bring unparalleled precision and efficiency to the grinding process, enabling the automation of complex surface geometries and production sequences. In the realm of CNC grinding, the integration of sophisticated software and hardware ensures the precise control of the grinding wheel’s movements, down to micro-level adjustments. These systems allow for the programming of grinding operations and paths, adjusting for speed, feed rate, and coordination, thereby achieving optimal surface finish and dimensional accuracy. Mastery over CNC controls not only significantly enhances productivity but also ensures consistency across batches, reducing human error. For industry professionals, understanding the capabilities and limitations of CNC systems is crucial for maximizing their benefits—this includes selecting the right type of control for the application at hand, whether it’s for simple repetitive tasks or for executing complex, custom profiles.

How to Choose the Right Grinding Machine for Your Needs

How to Choose the Right Grinding Machine for Your Needs

Assessing the Material and Complexity of Your Workpiece

The decision of a grinding machine highly depends on the unique features of the workpiece which include its material and complexity in geometry.

  1. Material qualities: Different materials respond in various ways during grinding. For example, hard metals or alloys will need more powerful machines with stronger systems that can apply force without causing any harm. On the other hand, soft materials should be ground at lower power levels so as to prevent excessive wear and tear.
  2. Shape and size: The shape and size of your workpiece determine what kind of grinding machine you should use. If it has intricate features, then you will have to employ an advanced CNC machine for precision purposes because they are designed with such capabilities; they can accommodate complex shapes, too. Moreover, bigger workpieces require larger tables as well as increased power output from machines used during the processing stage to ensure efficiency is achieved.
  3. Requirements for finishing surfaces: It is important to consider what type of finish one wants on their object before selecting a specific grinder model. More sophisticated control systems found in high-precision grinders allow finer finishes with tighter tolerances to be achieved therefore such machines should be chosen basing on surface finish specifications provided lest one wastes material or spends too much time trying.
  4. The volume of production: The number of expected volumes influences choice too, since some may need higher speeds while others only require versatility; hence, low automation levels are used, which would otherwise demand large batches for consistency purposes across speedier units that could have been selected when dealing with huge amounts of work done over time consistently so each batch comes out same quality wise but faster due less setup time being required between them, unlike the case where one has deal differently depending upon whether he got many pieces do together daily once again thank u very much, sir!

In conclusion, there are various factors that determine which grinding machine to use, among them being the workpiece’s material properties, size or shape complexity, desired surface finish requirement, and expected production volume. These considerations enable industry players to make informed decisions regarding equipment selection, thereby ensuring optimum results in terms of performance, quality, and cost-effectiveness.

Comparing Types of Grinding Machines: Which One Suits Your Project?

When it comes to choosing grinding machines for your project, the decision really boils down to what specific needs your application has. An example of this would be surface grinders which are perfect if you want a smooth finish on flat surfaces. They achieve this by moving an abrasive wheel that rotates over the workpiece’s surface. Such a kind is most appropriate when there is need for high precision and good surface finish.

Cylindrical grinders, conversely, are used primarily in shaping outside features of things; they should therefore be given priority when working with cylindrical parts whose roundness or size must meet close tolerances. This category can further be divided into external and internal grinders; each being designed for particular duties.

When dealing with more complicated shapes or profiles, one should consider using a CNC (Computer Numerical Control) grinder. With CNC technology, you are able to automate your grinding process with a much higher level of accuracy and uniformity than can ever be achieved by manually operated machines. This alternative works best where materials have intricate designs carved onto them or when there is need to produce large quantities at once while ensuring that every piece comes out exactly alike every other time.

In conclusion, selecting the right grinding machine type for your project will depend on certain factors such as material properties, size/shape complexity, desired surface finish, and production volume, among others. Different types offer different benefits, so knowing them will help guide informed decision-making, thus ensuring efficiency in terms of cost savings as well as quality improvement during grinding activities

Maintenance and Safety Tips for Operating a Grinding Machine

Maintenance and Safety Tips for Operating a Grinding Machine

Preventive Maintenance: Ensuring Longevity and Efficiency

For a silica gel to absorb moisture as efficiently as possible, it should be placed in a strategic manner within a storage or transit environment. The first thing that should be done is to put these desiccants next to the things that can be destroyed by water easily. It is advisable to use containers or enclosures that can breathe slightly but still hold packets; this allows air loaded with moisture to come into contact with silica gel without physically damaging them or making them scattered all over the place. In the case of large areas or objects, several packets need to be distributed equally so that absorption can happen uniformly throughout the whole space. Always consider the size of items being protected and their susceptibility towards wetness when determining how much of silica gel should be used lest some parts remain unprotected.

Adhering to Safety Protocols: Protecting Yourself and Others

When working with a grinder, it is important for both you and those around you to follow safety procedures. Always wear personal protective equipment (PPE) such as safety glasses, face shields, and gloves in order to prevent injuries from flying particles or sparks. Another thing that should be done is to make sure the machine has accessible emergency stops throughout its design so they can be reached during unexpected events like getting caught by clothing or hair while using it. Operators need regular training sessions where new safety methods are taught along with how best to handle equipment. Dust inhalation may cause respiratory problems; hence, proper ventilation should also be maintained. These steps can help create an accident-free environment, thereby promoting a safe and productive work atmosphere.

Innovations in Grinding Machine Technology

Innovations in Grinding Machine Technology

The Evolution of High-Speed and Multifunctional Grinding Machines

The development of fast, all-purpose grinding machines is a sign that manufacturing technology keeps progressing. Such complex systems have been created to match the growing demand for efficiency, precision, and versatility in the metalworking and tool-making industries. The most important factors that determine their advancement are as follows:

  1. Spindle Speed: In modern grinding machines, spindles of great rotational speed that exceed 60,000 RPM can be found; this drastically cuts down machining time and enhances the quality of surface finish.
  2. Control Systems: The use of advanced CNC (Computer Numerical Control) systems enables precise management of grinding processes, thus making it possible to achieve high accuracy when producing complicated shapes or patterns.
  3. Multi-Axis Capability: Models of today possess multi-axis functionality (3, 4, or even 5-axis configurations), which allows operators to make intricate cuts at any angle with greater precision than before.
  4. Automation and Robotics: Nowadays many high-speed grinding machines are equipped with automatic loading/unloading systems as well as robotic arms that minimize human involvement in production processes while increasing their efficiency.
  5. Adaptive Grinding: Thanks to sophisticated sensory technology together with real-time feedback mechanisms, these machines can automatically adjust processing parameters according to variations in materials or tools wear so that consistency of quality is ensured.
  6. Energy Efficiency: Improved design combined with better materials has led to substantial energy saving in more recent units; this lowers operational costs besides reducing environmental impact associated with power consumption during long hour working periods.

This development implies not just technological progress but also a move towards sustainability through more accurate and efficient ways of manufacturing things required by modern industry complexity.

Impact of Automation and AI on Grinding Practices

An important change in manufacturing has begun with automation and artificial intelligence (AI) applications for grinding processes. Manual labor is cut down dramatically, mistakes are reduced to a minimum, and production flows more smoothly when robotic arms are used along with automated loading systems. Algorithms and machine learning enable AI to predict tool degradation as well as changes in workpiece properties, among other process variables, such that it can adjust itself accordingly at any given time. This allows faster and more accurate finishing while increasing the machine’s life span and decreasing idle periods. In advance of warning signs of possible breakdowns by machines, predictive maintenance through the application of AI ensures uninterrupted operations, thus cutting down on unforeseen expenses. Henceforth, precision sustainability efficiency integration becomes inevitable within the grinding industry since these technologies will work together harmoniously so as to set new benchmarks for excellence in manufacturing which may be termed as “lights out” factories where there is no need for human intervention during production runs because everything happens automatically from start till finish even when we sleep.

Reference sources

  1. Online Article – Modern Machine Shop:
    • Summary: The website Modern Machine Shop recently published an article about how to unlock the potential of grinding machines. This online source offers the ultimate guide to understanding this technology, applications, and advances in precision machining. To achieve surface finishing, accuracy, and productivity, it covers such areas as the types of machines used for grinding process automation integration and best practices in order to attain optimal results.
    • Significance: For engineers, machinists, or operators seeking ways to improve their operations with grinders, therefore making valuable resources available from manufacturers like us who can share knowledge on how best they work within different industries, thus enhancing our own capabilities too.
  2. Manufacturer Website – United Grinding Group:
    • Summary: The United Grinding Group’s website has a complete guide that gives information about what can be achieved through these machines; it showcases various grinding solutions the company offers as well as its technologies used in them and stories where customers have succeeded with their help too. In addition, visitors are exposed to more advanced software capabilities for better precision when dealing with aerospace industry parts, among other sectors that require high levels of accuracy during production processes.
    • Significance: Being one direct source from leading manufacturers whose products are widely known worldwide, this particular site acts as practical reference material containing useful examples showing the benefits/uses of different types of Grinding Machines – thus allowing individuals involved at any level along value chain opportunity learn new things about this area while still considering latest innovations being made here.
  3. Academic Journal – Journal of Manufacturing Processes:
    • Summary: A Journal Article that was done under manufacturing processes provides detailed information regarding research carried out so far concerning grinding machine potentials both in labs and industries; they focus mainly on aspects like optimization methods employed during process planning stages or even after actual cutting has taken place where tooling related issues may arise leading up poor finishes either visually or technically plus suggestions made towards improving overall quality levels achieved through sustainable machining practices among others mentioned earlier. The paper also mentions some recent developments made around cutting-edge technology associated directly with Productivity improvement since these two variables cannot be separated but must always go hand-in-hand if success is to be realized within the shortest time possible without compromising whatsoever.
    • Relevance: It targets an audience composed mainly of people who have higher degrees, such as master’s degree holders, PhDs, and other experts in the field of grinding machines; hence, it provides scientific evidence that can help them understand better what happens when different types are used under various conditions thereby enabling scholars come up with new ideas which may eventually lead into breakthroughs within manufacturing sector at large.

Frequently Asked Questions (FAQs)

Frequently Asked Questions (FAQs)

Q: What is the aim of a surface grinder?

A: Flat surfaces are mainly ground by a surface grinder. To do this, an abrasive wheel is used as a cutting tool by the machine so that it may grind with high precision to give better surface finish quality. This kind of grinder machine is very appropriate for finishing workpieces to the required measurements.

Q: How does floor grinding benefit the overall condition of concrete surfaces?

A: Grinding floors is an essential technique for repairing, preparing, and improving concrete floors. The use of a floor grinder increases the evenness and flatness of a floor, which leads to the removal of coatings and prepares it for other treatments, such as polishing. Abrasive grinding heads are used in floor grinding machines to remove surface defects, smooth out raised areas or bumps and give it a glossy look.

Q: Can you polish metals with bench grinders?

A: Yes, different wheels can be fitted into a bench grinder for metal polishing. It is possible to buff and polish metals up to a bright finish by using bench grinders that have soft polishing wheels or pads instead of abrasive wheels. The workshop would not be complete without this flexible feature, making it a worthwhile investment tool among others found in metalworking shops too.

Q: What differentiates mills from grinders?

A: Although mills and grinders both serve similar functions in that they crush materials into smaller pieces, variations exist between them. Food-processing facilities employ mills, especially if involved with grinding grains, as these tend to achieve more uniform reduction sizes before further processing while producing foodstuffs or working metals into shaped components. Surface or tool grinders, however, focus on attaining desired finishes, either visually smoothnesses through removals via abrasions where woods/metallic objects are concerned

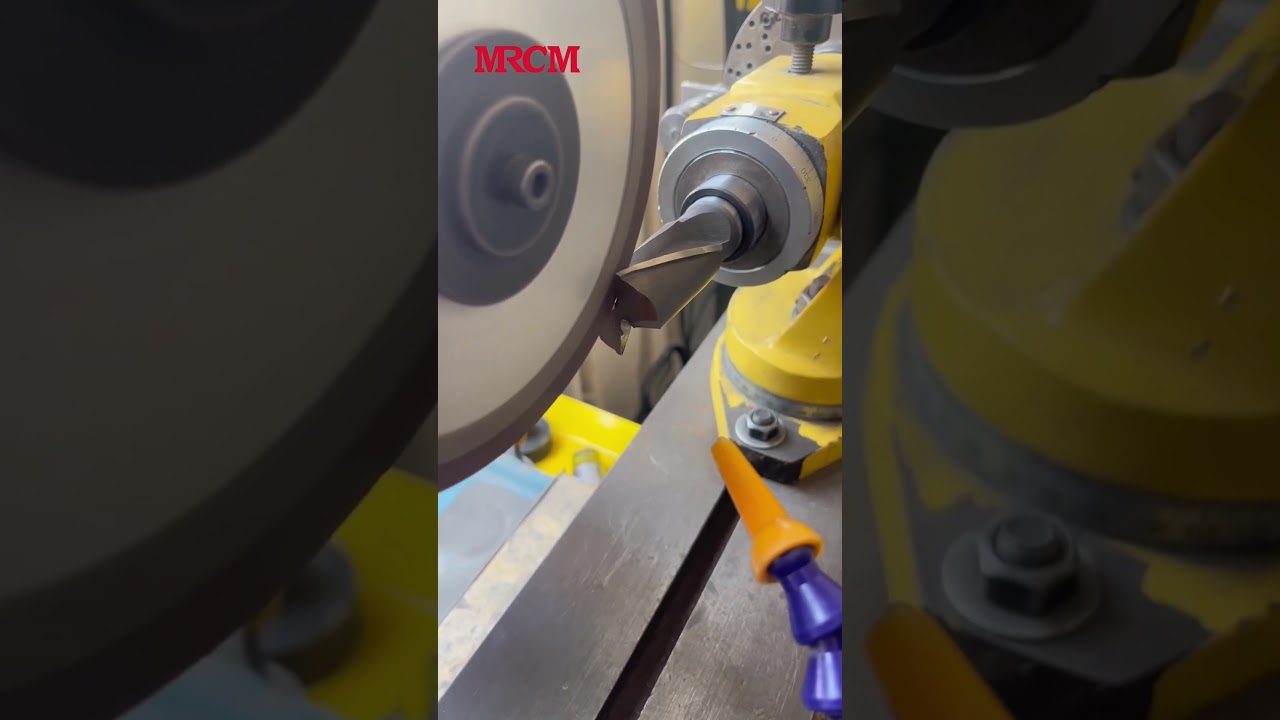

Q: Why are tool grinders and cutter grinders crucial in manufacturing?

A: Tool grinding machines and cutter sharpening devices are essential parts of the production process because they grind materials to precise dimensions or hone cutting edges. They have many different kinds of attachments and wheels that can be used to control the shape and finish of a cutter with great accuracy, which is necessary whenever complex shapes need to be produced by cutting tools. This feature alone greatly contributes towards cost-effectiveness as well as quality improvement during any manufacturing activity.

Q: How do polishing machines enhance the surface quality of materials?

A: Polishers help improve material finishes by using fine abrasives or compounds to smooth surfaces until they become shiny. It removes superficial blemishes, scratches; rust layers etc., thereby giving them more aesthetic appeal while also ensuring better resistance against corrosion where applicable. Polishing marks the final stage in fabrication processes where appearance matters most or when extra functional properties should be attained through surface treatment.

Q: What types of materials can be processed by grinding machines?

A: Grinders are capable of handling various materials such as metals, plastics, glass, ceramics, and wood, among others. The nature of work being done on cylindrical components would require a cylindrical grinder, which is not only surface grinding but does precision turning operations, too, whereas metal surfaces may need both types depending on whether it’s for finishing purposes or preparing them before further processing takes place elsewhere in the industry. Different abrasive wheels will determine how well these devices work with specific substances, considering their chemical composition.

Q: How do pulverizers differ from traditional grinding machines?

A: Pulverizing mills differ significantly from conventional grinders since they break down solids into fine powders instead of just reshaping them or smoothing out rough areas, like what happens with other types, such as those used in metalworking shops. This makes them suitable for use within pharmaceutical establishments where raw drug ingredients must first be reduced to smaller particle sizes prior to storage awaiting further treatment steps; hence, their popularity across food processing plants too- particularly when dealing with bulk materials.
