The Electrical Discharge Machining (EDM) invention revolutionized precision manufacturing. It is able to shape complex materials very precisely. This manual will make the principles, techniques, and possibilities of EDM clear so that people can understand them easily. Different types of EDM machines with their unique functions will be discussed, as well as steps that should be taken for the best outcome achievement. The paper examines technical characteristics and performance criteria that can enable beginners or experts to realize how they can utilize this technique in their fields of specialization for better results. Get ready to learn about Electrical Discharge Machining – a place where advanced technologies are combined with traditional skills like nowhere else on earth!

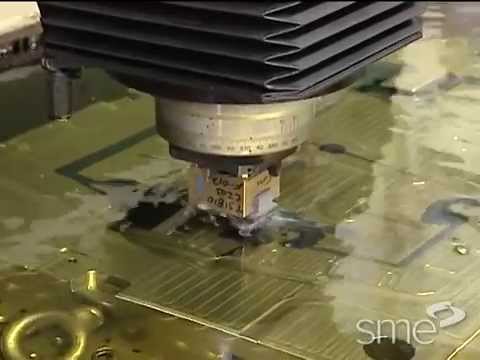

What is Electrical Discharge Machining (EDM)?
How does electrical discharge machining work?
Electric Discharge Machining (EDM), the concept involves rapid electrical discharges that eliminate material from a piece of work. The procedure employs an electrode that is non-contact, typically made of copper or graphite, to create sparks when it comes close to the conductive substance. These sparks happen within a dielectric fluid, hence forming plasma channels that melt and vaporize small amounts of the workpiece so as to shape it in accordance with the configuration given by the electrode used. To enable intricate designs with smooth surfaces without necessarily having to touch them, precision in EDM depends on controlling discharge energy levels as well pulse width durations while aligning tools correctly relative to pieces being worked upon.
What are the main components of an EDM system?
An Electrical Discharge Machining (EDM) system is made up of many important parts that work together to achieve high precision and efficiency in machining. Some of these components are:
- Power Supply: This generates electric power needed for the process. It controls voltage and current levels which affect discharge properties like energy per pulse and frequency of discharge.
- Electrode: Electrodes are made from conductive materials like graphite or copper, and they are shaped according to desired contour of a workpiece being machined. Its shape and material greatly affects how well it machines surfaces.
- Dielectric Fluid: These fluids don’t conduct electricity but have other functions, such as cooling, removing worn-out particles through flushing action, and stabilizing electrical discharges. Deionized water, hydrocarbon oils, or synthetic liquids may serve as dielectrics depending on process needs.
- Workpiece: A conductive metal which is being cut by electric sparks between electrodes; this can be affected in terms of geometry and thermal properties when selecting discharge energy or feed rate among others.
- Control System: This includes both hardware and software that monitor & control all aspects of the machine tool during operation so that accurate results are obtained every time workpieces are produced. It should provide dynamic adjustment capability too.
- Servo Mechanism: Positions accurately an electrode relative to a work piece thereby enabling precise gap distance control. Linear servos or rotary servos may be used depending on specific EDM process type e.g., sinker EDM vs wire EDM .
- Inspecting & Measuring Tools – These tools measure dimensions accurately against design specifications especially where tight tolerances must be achieved while maintaining good surface finish quality after cutting is done by electrical discharges.
Each component has its own unique contribution towards ensuring successful “EDM” operations with excellent outcomes hence considered as best practice for complex geometries within various manufacturing sectors involving narrow allowances.
What materials can be machined by EDM?
Electro Discharge Machining (EDM) can be used to process a wide range of conductive materials. Some commonly machined materials include:
- Tool Steel: Tool steels are widely used in mold and die manufacturing because they need high geometrical accuracy and durability that can only be achieved through the use of EDM.
- Stainless Steel: Stainless steel is highly resistant to corrosion and has great strength, which is why it’s commonly used in medical and aerospace industries, too. This material can easily be shaped into complex components using Electrical Discharge Machining.
- Titanium Alloys: Titanium alloys possess high strength-to-weight ratios as well as heat resistance properties; hence, they are found to be of extensive use in aerospace applications where these characteristics are required most frequently. Rigid materials like these should ideally be machined by EDM machines since the heat produced does not affect their structural integrity.
Apart from these three metals, EDM may also work on other materials like copper, brass, or even some ceramics, provided that adequate electrical conductivity is present!
Types of EDM Machines and Their Applications
What are the different types of EDM machines?
Electrical discharge machining (EDM) is a term that covers many different machines, each of which has been adapted to specific applications and operational requirements. The two main types of EDM machines are:
Sinker EDM (also known as Die Sink EDM):
This method uses a shaped electrode which is lowered into the workpiece until it creates a cavity by removing material. It is particularly useful for making complex shapes and intricate details in dies and molds. The electrodes are often made from graphite or copper, but any conductive material can be used; this allows for very fine control over dimensions and surface finish quality.
- Common Applications: Molds, dies, or other parts used in aerospace/automotive industries where there may be tight tolerances on size/shape/positioning accuracy.
- Data Point: Sinker EDMs are capable of achieving accuracies down to ±0.0001″ – however, much depends on electrode type and setup conditions employed during operation.
Wire EDM:
In this type of machine an electrically conductive wire (usually brass) moves continually through the work piece while cutting along specified paths. Wire-EDMs are known for their ability to cut extremely intricate profiles without distortion; they also excel at working with thin sections or hard materials which might otherwise deform under traditional machining methods.
- Typical Applications: Cutting components with varying thicknesses; producing thin-walled parts; creating complex geometries found within medical devices/aerospace components, etc., where precision is paramount.
- Data Point: Wire-EDMs typically run at cutting speeds between 3-20 inches per minute (rpm) and can hold tolerances down to ±0.0001″.
There are additional types beyond these primary ones including Hole Popper EDMs designed specifically for drilling accurate holes into hard materials like carbide – as well as Fast Hole EDM units optimized towards fast drilling rates across small-large diameter ranges etc.; all further enhancing versatility throughout various industries utilizing EDM technologies.
How is wire EDM different from sinker EDM?
Wire electrical discharge machining (EDM) and die-sinking electrical discharge machining are not the same in terms of how they operate or where they can be used. Wire EDM uses a constantly moving brass wire to cut through the workpiece, which allows for fine profiling and cutting thin sections and hard materials. In contrast, Die Sinking EDM works by eroding material from the workpiece using a shaped electrode, thus making it perfect for creating complex shapes and detailed features in molds and dies. Both methods can achieve high precision — tolerances of up to ±0.0001 inches —but this is where their similarities end, while one may choose any between these two based on his requirements, such as whether he needs sharp corners or wants something rounder looking altogether.
What are the applications of micro EDM?
Micro EDM (Electrical Discharge Machining) is used in many high-precision industries where intricate features are required. Some of the key applications are:
- Medical Devices: Micro EDM is used for creating fine features and keeping tight tolerances on components used in medical devices like stents, surgical instruments or microtubing.
- Aerospace Components: In the aerospace industry, micro EDM can be used to manufacture turbine blades, among other complex parts with lightweight and detailed geometries necessary for performance and efficiency.
- Electronics Manufacturing: Miniaturization without loss of accuracy is made possible during production by the use of micro EDM in the electronics industry, which helps to create small parts like connectors or micro switches that improve device functionality.
These uses show us how micro EDM has advanced technology, which creates highly detailed pieces across different critical sectors.
Understanding the EDM Machining Process
How to control the EDM process?
To be effective in EDM process control, it is necessary to track and change the main parameters with extreme care so that they guarantee accuracy. They involve:
- Discharge Voltage: This should be set right because it determines spark intensity and the rate at which materials are removed.
- Pulse Duration: This controls how long sparks take place, thereby affecting cut quality and surface finish.
- Dielectric Fluid: Accuracy depends on what type of dielectric fluid used together with its flow rate since these two factors contribute to cooling and washing away chips.
- Electrode Material And Shape: The choice of electrode material should match desired feature complexity levels while shape must conform dimensionally accurate output.
- Feed Rate: Material elimination from workpiece during electrical discharge machining ought to be optimized through feed-rate management that prevents premature wear out besides keeping tolerances within limits.
With this knowledge about controlling all these factors, one can optimize precision through various applications of electric discharge machines.
What role does dielectric fluid play in EDM?
The Electrical Discharge Machining (EDM) process depends greatly on a dielectric fluid, which has several important roles. Primarily, it serves as an insulator by not allowing electrical discharges until the tool and workpiece are close enough that they can start sparking. Secondarily, it cools down both electrode and workpiece by diffusing heat produced during machining, thus saving them from getting damaged because of high temperature. Moreover, this liquid helps flush chips and worn-out particles away from the work zone so that there is always a clear path for electric discharge to pass through; also, it guarantees the consistent cutting ability of a machine tool throughout its life cycle. Last but not least importantly, the selection of dielectric fluid may influence the surface finish and overall quality of the machined part, thereby underlining its significance in achieving desirable results in EDM operations.
How does EDM compare to conventional machining methods?
Electrical discharge machining (EDM) has its fair share of pros and cons when compared to traditional milling and turning methods. One major advantage is that it can be used to shape intricate designs with complex geometries which would have been difficult or even impossible with conventional techniques, especially in hard materials. Moreover, the precision engineering sector needs processes like EDM that hold close tolerances and produce fine finishes.
However, on average, EDMs have lower cutting speeds than traditional machines thus they are not ideal for mass production where time is of essence. Furthermore, running an EDM setup comes at a higher cost because of specialized equipment requirements and electrode materials being consumable items. While ordinary machining methods involve physical cuts being made, electric discharges are all about heat, so any electrically conductive material, irrespective of its strength or hardness, can be machined using this method. The fact that these two processes work differently demonstrates how much they need each other; one can do what the other cannot do, thereby broadening manufacturing capabilities in general.
Advantages and Disadvantages of Using EDM
What are the advantages of EDM?
Electrical Discharge Machining (EDM) has many strengths that make it an important tool in different manufacturing settings:
- Precision and Accuracy: Popular for its ability to hold tight tolerances, often within ±0.005 mm. This feature is very important for industries like aerospace or medical devices where precision is critical.
- Complex Shapes: EDM can machine complex geometries with sharp internal corners as well as intricate details which are either difficult or impossible to achieve using conventional methods. For instance, according to one research, features as small as 0.15mm wide were produced by EDM.
- Material Versatility: It works on variety of electrically conductive materials including hardened steel, titanium, copper among others alloys too. This makes it possible to machine tools and components that need high wear resistance.
- Reduced Mechanical Stress: Since EDM erodes material through heat rather than physical contact with cutting edges; this reduces mechanical stress on workpiece hence minimizing chances of deformation while enhancing component life span.
- High Surface Finish: Typically, the process delivers good surface finishes, frequently reaching Ra values of 0.2 µm or lower, even better than this figure, which is useful in applications where functional or aesthetic properties depend on surface quality.
- Tool Life Preservation: Because there are no cutting tools involved during non-contact machining stage; both the workpiece and any used tools will last longer thus saving money eventually over time due to lack of direct wear from them towards each other.
- Automation Compatibility: It can easily be incorporated into automated production systems so that throughput is increased thereby ensuring uniformity throughout batches during production runs.
What are the limitations of using EDM?
Electrical discharge machining (EDM) has its advantages but also a number of limitations. Manufacturers should therefore be aware of these drawbacks.
- Restricted Materials: Non-conductive materials cannot be processed by EDM because it only works on electrically conductive ones.
- Speed Of Operation: In terms of speed, material elimination in electrical discharge machining is much slower than that of traditional methods of manufacture thereby making it unsuitable for mass production industries.
- Surface Hardness: While this method achieves fine surface finishes, some parts may become hardened due to heat produced during the procedure thus necessitating further finishing operations for desired characteristics to be attained.
- Equipment Costs: Compared with other conventional machines used for cutting metals, etc., the initial investment in EDM machines and their maintenance can be very high, which discourages many small-scale users.
- Wear & Tear On Electrodes: Electrodes wear out over time as they are used during the process, hence adding to expenses, especially where accuracy is needed frequently.
These disadvantages must always be put into consideration vis-a-vis benefits while thinking about adopting EDM in any given manufacturing application.
How can EDM improve surface finish?
There are many ways in which surface finish can be improved by means of Electrical Discharge Machining (EDM). This is achieved through extremely accurate material removals at micro levels that allow for the realization of delicate features and intricate geometries with negligible burr formation affected by the process. Such precision leads to smoother surfaces as compared to those obtained by traditional methods of machining; secondly, EDM being non-contacting eliminates mechanical forces that might distort the workpiece, thereby ensuring top quality finishes while thirdly different electrode materials can be used together with their shapes so as to optimize surface roughness through spark gap setting and energy application adjustment for uniform texture achievement coupled with enhanced characteristics. Thus, it becomes possible to produce components with close tolerances and excellent surface integrity using EDM, thus often reducing additional finishing operations.
Applications and Uses of EDM in Modern Manufacturing
What industries use EDM most frequently?
Electric discharge machining (EDM) is broadly used in many industries because it is very accurate. The aerospace industry uses EDM to make detailed parts that need close tolerances. In automotive manufacturing, dies and molds are produced using EDM so that they fit together perfectly and have a smooth finish. Medical device makers employ this technology when creating components with intricate shapes or small sizes. Also, electronic manufacturers utilize electric discharge machining for building complex circuitry elements or connectors, which cannot be done by any other means of production that is available today on Earth. These examples illustrate how important precision can be achieved through different types of applications where there is no alternative method capable of delivering the same level of accuracy and quality as electric discharge machining.
How is EDM used in precision machining?
In precision machining, electrical discharge machining (EDM) is used to take away material from the workpiece by means of controlled electrical sparks. This involves using a conductive electrode that is charged and brought close to the workpiece so as to create a number of regulated discharges that remove material with great accuracy. The precision of EDM allows for intricate designs that would otherwise be impossible with conventional machining methods. Operators can adjust pulse duration, current, and voltage, among other parameters, in order to achieve desired tolerances and surface finishes by slight alterations during the machining process according to this capability. It is particularly useful in creating complex shapes, making cavities on molds or producing parts requiring minimum post-processing.
What are the specific applications of wire EDM?
Wire electrical discharge machining is a very powerful method used in many industries to make accurate shapes in conducting materials. Some of its main applications are as follows:
- Manufacturing tools and dies: Wire EDM is necessary for producing high precision molds and dies used in stamping or injection molding which allow complex geometries with close tolerances.
- Making aerospace components: Wire EDMs are employed to make lightweight parts with complicated shapes required by safety regulations within this industry while ensuring they meet all necessary performance standards.
- Designing medical devices: The medical sector uses wire electric discharge machines when creating small intricate pieces like surgical instruments or implants where accuracy along with biocompatibility are crucial steps.
Moreover, this technique finds its place also among electronic manufacturing companies for creating automotive elements as well as prototypes of intricate designs thus revealing versatility combined with high precision capabilities besides being appropriate for various other purposes involving these features.
Reference Sources
Electrical discharge machining
Frequently Asked Questions (FAQs)
Q: What is electric discharge machining?
A: What is known as electrical discharge machining (EDM) is a process where metal materials are shaped using electrical discharges or sparks. It works best for making intricate shapes and small details.
Q: How does the electric discharge machining process work?
A: The electric discharge machining process involves controlled electrical discharge creation between an EDM tool (electrode) and the workpiece. High temperatures are produced by the sparking, which melts and vaporizes material; afterward, this substance is washed away through a dielectric fluid.
Q: What are the main applications of EDM?
A: EDM has different applications in mold making, die manufacturing, hole drilling, and the production of complex components that can not be machined easily with traditional methods. This technology is widely used in the aerospace industry, the automotive sector, and medical device production.
Q: What is the difference between wire EDM and ram EDM?
A: Wire-cutting EDM employs a thin wire to cut shapes into the workpiece; die-sinking (ram) employs custom-shaped electrodes plunged into it. In both cases, the electrodes must be submerged in dielectric fluid during machining.
Q: How does CNC machining enhance EDM technology?
A: CNC systems allow automated control over various aspects like speed or depth, thereby ensuring consistent precision throughout all stages of manufacture where required. This makes them ideal for high-precision applications. Therefore, what computer numerical control (CNC) does is provide accurate management on every side of exactitude engineering, including time reduction, while increasing its quality aspect since complex parts can be made repetitively without error because these machines do things automatically one after another.
Q: What are the advantages of EDM drilling?
A: EDM drilling, such as small hole drilling EDM and fast hole drilling EDM, can create accurate, deep, and narrow holes in hard materials. This method is very good for high accuracy and finish requirements.
Q: How does dielectric fluid contribute to the EDM process?
A: In the EDM process, the dielectric fluid has several functions. First, it insulates until there is enough voltage to generate an electric spark. Second, it cools down both the workpiece and the electrode. Third, it washes away eroded particles from the machined area.
Q: What factors affect machining speed in EDM?
A: The speed of cutting in EDM is affected by the type of material being processed through it, electrical parameters (voltage current pulse duration), the type of dielectric fluid used, and how effectively flushing takes place.
Q: Can electric discharge machining be used on conductive or non-conductive materials?
A: Electric Discharge Machining (EDM) is mainly employed when working with conductive materials because this technique relies on electrical discharges between an electrode and a workpiece. However, traditional edm cannot be used for non-conductive materials since they don’t permit the flow of electric current.
Q: What are some drawbacks of using electric discharge machining?
A: Slower speed compared to other types of machining processes; It can only work with conductive materials, which limits its application areas further; thus, electrode wear may occur sometimes along with the need for specific dielectric fluids, but thermal stress generation also becomes problematic in some instances.
