The production industry is moving fast these days. Manufacturers won’t stop until they are efficient, accurate and versatile. Today, 5-axis CNC (Computer Numerical Control) machining centers have brought about endless opportunities following this wave of technological advancements. This article will look into how these sophisticated systems can change your production capabilities forever, which help you make more precise parts faster while saving money. If you have been working in manufacturing for some time now, or even if it’s just something that interests you because of all the new tech being used in factories around us, then reading through this piece on 5-axis CNC machining centers should give insight into what could end up changing everything we know about making things.

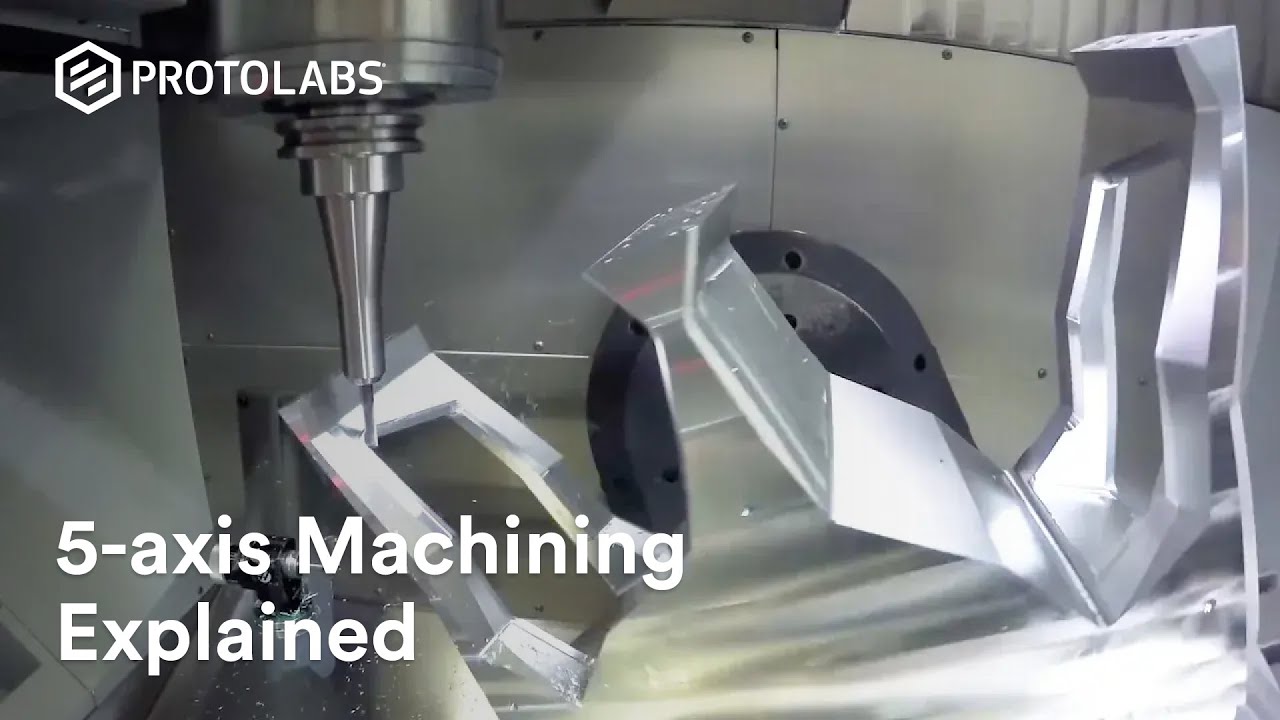

What is 5-Axis CNC Machining and How Does It Work?
The Basics of 5-Axis Machine Technology
When it comes to machining parts with complex geometry and fine detail, which cannot be handled effectively by traditional 3-axis machines, the 5-axis CNC machining is at the forefront. This means that, in essence, what this technology does is allow the cutting tool to move across five different axes concurrently, thus giving it the ability to approach a workpiece from almost any direction. More so than ever before capabilities like these are vital for producing intricate designs, complicated shapes or components requiring high accuracy and efficiency.
The fundamental parameters of distinction for 5-axis CNC machining are:
- X, Y and Z Linear Axes – These are also found in 3-axis machining which represents movement along horizontal and vertical directions.
- A and B Rotational Axes – Additional axes rotating around X & Y axis respectively; In some machine configurations C-axis may be present that rotates around Z-axis providing even greater flexibility.
What this multi-axial motion allows is for parts to be machined without repositioning, thereby reducing setup time; this not only improves accuracy by minimizing potential errors but also leads to higher-quality products overall. Whether it’s aerospace parts or automotive elements or delicate medical apparatuses – versatility coupled with precision offered by five axis computer numerical control (CNC) machines makes them an indispensable part of today’s manufacturing scenario.
Differences among three Axis, three plus two Axis & Simultaneous Five Axis Machining
Knowing how different types of machines work can help one choose their best fit depending on what they want accomplished using them within specific production tasks. Each variant has unique features that make it suitable for various applications while offering advantages over others when realized appropriately:
Three axis systems use basic forms where tools move in three directions namely x y z thereby cutting materials accordingly. This type works well with items having simple geometries since they lack provisions necessary for creating complex shapes or angles without multiple installations.
Three plus Two Axis Machining: Also referred to as 5-sided or indexed machining, this method involves clamping down the work piece at an angle using additional A and B (or C) axes then proceeding to cut it with standard three axis movement. In one set up alone, a product’s five sides can be accessed thereby increasing accuracy through reduction in number of setups required; however, because x y z do not move concurrently with a b c during real time so it is less powerful than full fledged five axis systems for complex geometry.
Simultaneous Five Axis Machining: All five axes (X, Y, Z and two among A, B or C) are operated simultaneously in these advanced configurations where by having them all moving at once provides unmatched precision plus flexibility. For example such type can enable production of very difficult parts featuring intricate geometries along with undercuts or even complicated angles within single setup. High precision industries like aerospace or automotive that deal with tight tolerance complex components require simultaneous 5-axis machines.
The choice between these options will depend on part complexity levels required precision as well as economic considerations involved during manufacture stages; while offering higher capability levels this method also attracts significantly more expensive costs and operational intricacies making it viable when simplicity is key for cheaper pieces but at the same time adequate perfection has to be achieved.
Benefits of Having a Five-Axis Machining Center
The multifaceted benefits of a machining center with 5 axes include improved quality and precision in the final product among other overall productivity and efficiency gains throughout production.
- Precision and Quality Improvement: The use of five-axis machining centers reduces errors caused by multiple setups when working on complicated parts. This is especially useful for high-precision industries like aerospace or medical devices where even the smallest deviation can be critical.
- Productivity Increase: Single-setting completion of components cuts down on time spent waiting for workpieces to move between machines, which raises output rates. Setting up becomes faster due to tasks being consolidated into one operation; additionally, setup times are minimized as tools need not be changed anymore thus simplifying things more.
- Tool Life Extension along with Greater Flexibility: With five-axis motion dynamics; tools can always stay at optimal cutting positions while maintaining consistent chip loads resulting smoother finishes as well extending tool lives. Additionally different angles at which work pieces may be approached give more options for tooling selection thereby enhancing machine utilization efficiency further.
- Design complexity and creativity: Parts having complex geometries or intricate details that cannot easily be made using three axis are enabled through this type of machining centre. Designers are empowered to think outside the box leading them into coming up with innovative designs that have better functionalities when they make use of such capability hence driving towards development of component or product that has more functions.
- Cost effectiveness over time: Although initial investments required by these machines exceeds those demanded by their three-axis counterparts but savings on labor costs over long term periods along with waste reduction through better operational efficiencies will eventually compensate for initial outlay. Therefore, companies adopting 5-axis technology stand a chance of producing higher quality items faster and cheaper than competitors who do not utilize it.
Strategic positioning is achieved within industries calling for exactness, intricacy, speediness as well as cost consciousness thanks to 5 Axis Machining Centers which integrate sophisticated programming alongside state-of-the-art technologies. These kinds of advanced manufacturing solutions represent an investment in competitiveness through quality and innovation.
Choosing the Right 5-Axis CNC Machine for Your Needs
Comparing Vertical versus Horizontal 5-Axis Machining Centers
When comparing vertical and horizontal 5-axis machining centers, the first thing that you have to do is look at what your production process requires. Vertical 5-axis machines are known for being able to use gravity to help remove chips from the workpiece, which makes them great for complex parts with deep pockets or intricate details. This orientation also usually has better part accessibility for loading and inspection, making those operations easier.
On the other hand, if you need flexibility and efficiency in high-volume manufacturing then a horizontal 5-axis machine may be more appropriate for your needs. Such machines often come with a pallet changer system which allows one part to be loaded/unloaded while another is being machined; this can lead to significant reductions in downtime and increased productivity. Additionally, due to their configuration horizontal centers typically offer better chip evacuation mechanism than their counterparts – an important consideration when working with materials that produce large amounts of debris during long uninterrupted cuts.
In summary: you should choose between vertical and horizontal based on what specific machining requirements are including complexity of parts being produced; volume of production required; material properties encountered etc., since each type offers unique benefits that can help optimize processes and enhance quality throughout different stages.
Key Features To Look For In A 5-Axis CNC Machine
There are several key features that I consider vital when considering buying any five axes cnc router or mill machine tool so as not only maximize its performance but also ensure it gives good return on investment (ROI). Here they are:
- Control System: The control system acts as brain behind every machining centre; therefore it should be intuitive enough even for beginners yet powerful such that it supports advanced software solutions too. This will greatly reduce programming time needed thus enabling accurate cutting out of complex shapes easily.
- Spindle Speed And Power: Higher spindle speeds coupled with sufficient power output helps in fast removal of materials especially harder ones thereby reducing machining time required as well as improving finish quality achieved.
- Tool Change Capability: A machine fitted with fast reliable tool changer reduces idle moments between different cutting operations which increases overall production rate per shift.
- Accuracy Of Simultaneous Axis Movements: This simply refers to how precisely can multi-axis move at once across all directions; hence machines having high quality servo motors and feedback systems should be selected since they offer better accuracy during simultaneous movements with repeatability being an added advantage too.
- Build Quality And Stability: Rigidity of structure affects ability to absorb vibrations during cutting thus impacting tool life span, surface smoothness among other factors that contribute towards attainment of desired part specifications. Therefore, it is recommended going for those brands known for their robust designs built using top grade materials.
- Software Compatibility & Connectivity: Ensure compatibility between the controller software installed on this router or miller and your CAM system such that you may easily transfer files from one point to another without compromising integrity as well enhancing ease use through simplified programming commands along Ethernet connection type also providing network expansion options like WiFi
- Support & Maintenance Services Offered By Manufacturer: A good company should provide reliable customer care support services throughout lifetime ownership period by availing spares parts locally while still offering timely repairs when necessary.
When appraising providers of 5-axis machine tools, the first thing to do is examine their standing in the industry and how well their machines have performed. This means reading through client feedback and case studies as well as talking with current users when possible. Be sure to prioritize manufacturers that provide training programs covering everything from setup procedures all the way down through troubleshooting techniques; without this knowledge base, you won’t get very far in terms of utilizing your investment fully. Also, consider whether or not a given vendor’s equipment will be compatible with what you already have going on within your shop while also remaining open toward future technological advancements which might require system upgrades across various platforms – some companies specialize solely in particular types of software so keep an eye out for those too. Another important factor is cost: it’s not just about purchase price but rather total ownership cost over time including initial expenses such as installation fees but also ongoing costs like maintenance contracts along with any necessary upgrades that need performing (software updates can really eat into productivity if they’re neglected).
Maximizing Precision and Efficiency with 5-Axis CNC Machining
image source： https://www.sciencedirect.com/
Superior Accuracy Machining by Advanced Tool Moves
Advanced tool moves are necessary to obtain superior machining accuracy in five-axis CNC machines. Continuous five-axis machining enables the performance of compound or composite tool motions such as sweeping cuts, where the tool approaches the workpiece at an angle to cut more effectively, and intricate contouring that follows part geometry with extreme precision. Simultaneous five-axis motion ensures better surface finishes by keeping the tool in an optimum orientation on complex surfaces thus eliminating the need for manual finishing operations. Furthermore, high-speed machining (HSM) methods reduce tool wear, enhance surface finish and also greatly save on machining time hence a must-have for any manufacturer who wants efficiency without compromising with accuracy.
Complex Part Production through Incorporation of 5th Axis Rotary Tables
Incorporating a fifth axis rotary table into your CNC machining operation greatly opens up opportunities for producing complex parts. This new approach allows you to machine intricate components from virtually any angle thereby doing away with multiple setups which not only improves precision but also saves production time. With this type of technology even difficult-to-reach areas can be easily accessed so that manufacturers are able to achieve higher levels of accuracy when creating geometries or features that have never been possible before especially within industries such as aerospace medical devices automotive sector etc., which require high-precision components. Moreover its versatility makes it possible for one to come up with much more elaborate designs than would have been feasible or affordable earlier thus giving an edge over competitors in today’s fast changing market environment.
Increasing Productivity by Automating Your 5-Axis CNC
The main thing about improving productivity while working with 5-axis CNC machines lies in automating them. If manufacturers go a step further and integrate automated systems like tool changers, loaders for workpieces together with advanced programming as well simulation software; then they will be able to reduce setup times considerably besides increasing utilization rates for their machines. This does not only improve efficiency but also ensures uniformity in terms of quality throughout all produced parts since there is minimal room for errors when everything is done automatically. Additionally using IoT(Internet of Things) for predictive maintenance coupled with real time monitoring can enable one to make informed decisions that further optimize production schedules while at the same time reducing downtime. In conclusion, without automating your 5-axis CNC operations you won’t be able to achieve higher levels of productivity necessary to stay competitive within the precision manufacturing industry.
Integrating 5-Axis Machining into Your Manufacturing Workflow
Advantages of Single Setup: Faster Machining of Complex Parts
The inclusion of 5-axis CNC machining in a manufacturing workflow transforms the production process for complex parts due to its capability for single-setup which enables operations to be done much faster. This efficiency is notable because the 5-axis machine can manipulate the part on five different axes at once thus eliminating multiple setups. Consequently, this approach not only quickens manufacture but also reduces errors associated with repositioning the workpiece. In this respect, such a streamlined strategy leads to decreased production time besides heightened precision and more effective resource utilization thereby providing significant competitive edge within high-precision manufacturing sector.
Workholding Solutions for 5-Axis Machining
For effective workholding solutions have to be adopted when it comes to 5-axis machining in order to fully exploit this machine’s potentialities as well as guaranteeing accuracy in the final product. Among these innovative approaches are special fixtures and vises designed with maximum accessibility towards the workpiece being held in mind so that even complicated shapes may still be worked on from many directions without requiring additional setups which naturally translates into saving both times and money. Moreover, magnetic together with vacuum workholding systems have grown popular because they are able secure different types of materials firmly but with little set up time thus offering flexibility alongside efficiency among manufacturers who want optimize their operations involving 5 axis machines.
Strategies for Effective 5-Axis CNC Programming
The development of effective strategies for programming is critical if one wants to maximize efficiency of a machine and quality its output can achieve. One such strategy is employing advanced software capable of simulating machining processes within a virtual environment; through this, programmers can detect any possible challenges before actual production starts, hence minimizing costly mistakes plus material wastage. Furthermore, a toolpath optimization technique should be used, which ensures that the least amount of time is taken during processing while prolonging tool life at the same instance. Efficient use of knowledge about programming techniques coupled with continuous education among programmers and operators regarding the latest software updates relating to programming as well as utilization capabilities of any particular machine are also required. With these measures in place, manufacturers will be able to realize higher levels of accuracy faster production times and lower costs when carrying out 5-axis machining.
Navigating the ROI of Investing in a 5-Axis CNC Machine
How Can 5-Axis Technology Help in Future-Proofing Your Machine Shop?
Calculating Return on Investment: Cost Vs. Benefit Analysis
Return on investment (ROI) determination for a 5-axis computer numerical control (CNC) machine involves conducting an elaborate cost vs benefit analysis that weighs initial outlays against long-term gains. Here is how to do it:
Enumerate the Relevant Parameters Individually
Initial Investment: This comprises purchase price of the machine, installation costs and additional equipment necessary for its operation such as advanced CAD/CAM software.
Operating Costs: Regular expenses like power consumption rates; maintenance charges; tooling expenses; labor cost among others. It is important also to factor in ongoing personnel training needs so as not to underutilize this machine’s capabilities.
Productivity Gains: Complex parts can be produced faster using a 5-axis compared with standard 3-axis machines which leads to reduced time per part as well as lower labor content. This may result into higher output levels and even capture of new business opportunities due to expanded capability.
Material Savings: Increased accuracy gained through five-axis machining minimizes errors thereby cutting down wastes by reducing amount of raw materials required.
Quality Improvements: Enhanced precision coupled with versatility means fewer defects or rework thus saving material costs while at the same time improving customer satisfaction levels.
Market Advantage: The ability to manufacture intricate designs and higher grades of finish can give you an upper hand over competitors thus enabling entry into hitherto unexplored markets where demand for high precision components is rife.
Compare total cost ownership during life cycle vis-à-vis tangible benefits such as production efficiency alongside intangibles like customer delight throughout anticipated useful life span while undertaking cost-benefit analysis for this equipment. Make sure that all direct financial returns are considered including those arising from business growth resulting from increased capacity utilization or even expansion into new markets facilitated by enhanced capabilities provided by the system being evaluated. This will enable you know at a glance whether the investment is viable or not taking into account both short term gains and long run returns.
Case Studies: Success Stories from 5-Axis CNC Users
Some success stories stand out when it comes to looking into what has been achieved through employment of five axis cnc milling machines. These serve as best examples that clearly illustrate transformative potentiality associated with this kind of technology. One case involved a small aerospace parts manufacturer which found itself confronted by stringent industry standards while still desiring shorter production runs. The introduction of 5-axis cncs enabled them achieve not only 30% reduction in production time but also much better part accuracy thereby meeting even most demanding quality requirements set by aeronautics sector. Such an improvement allowed the company widen its geographical coverage thus winning contracts beyond their previous capability level.
Another good illustration is drawn from automotive sector where a supplier making customized components decided to use five-axis machining for streamlining their manufacturing process flowcharting procedures . With advanced precision levels offered by this kind of software coupled with high efficiency rates realized, they were able to come up with even more complex parts for use in performance cars within much shorter duration hence increasing throughput without compromising on final product quality standards followed during inspection phase after production has been completed.. This leap in productivity and capability transformed them into major players dealing with top quality motor vehicle spares leading continuous business expansion accompanied by heightened customer satisfaction index rating among other related factors.
These two cases clearly show different sides of benefits attributable to adoption of multi-axis technologies like these ones; it can enhance productivity; create new markets & ensure adherence to standards thereby positioning itself strategically towards becoming benchmark among peers within same industry sector thus promoting excellence through continuous improvement initiatives geared towards achieving customer delight throughout value chain management systems approach implementation framework based on ISO9000 standard requirements approach which seeks customer satisfaction as ultimate goal
To be forward-thinking in the face of a changing manufacturing environment, machine shops should adopt the 5-axis CNC technology. This move could insulate them against future changes that may occur. The capability to produce complicated parts quickly and accurately reduces lead time and increases competitiveness thereby enabling such businesses to thrive. The thing that sets it apart is its ability for more versatile machining; not only can you make precision components with it in a single setup but also handle intricate designs which would prove difficult using 3 or 4 axis machines. Furthermore, these additional capabilities mean that enterprises can respond rapidly to new market requirements while at the same time guaranteeing their success within existing and future markets by meeting all customer needs through this system flexibility brought about by five axes technology together with increased efficiency thus enhancing quality levels too in general terms this makes makerspace leaders ready for tomorrow’s challenges based on what we have learned today about productivity enhancements alongside good workmanship amongst other things like these two.
Understanding the Impact of 5-Axis CNC on Different Industries
5-Axis CNC Applications in Aerospace and Defense
The utilization of five-axis CNC machining marks a paradigm shift in the aerospace and defense industry regarding the production of high precision components with complex geometries and tight tolerances. Turbine blades, structural parts as well as detailed airframe features are among critical aerospace components that would not have been realized without this technology. It can cut intricate shapes out of solid blocks made from strong material thus reducing errors caused by multiple setups while improving structural strength at the same time. Also, 5 Axis machines have advanced capabilities which allow for creation of lighter weight but stronger parts contributing to overall performance enhancements in aerospace equipment reliability too. Such versatility coupled with accuracy forms basis for success and advancement within these areas where failure is not an option hence emphasizing on national security through AM.
The Role of 5-Axis Machining in Medical Device Manufacturing
In medical device manufacturing sector; there’s no doubt that five axis CNC has played a very crucial role in ensuring that there is production complex instruments or implants which are highly precise. It enables us to produce things we could never do before like curves inside curved slots etc.. that you can’t even see until after it’s all assembled! The medical field needs tight tolerance components so devices work reliably when used for critical health care applications – this level of accuracy would be impossible without using such an advanced system like 5AxisMachining AKA HAAS Automation! But what really sets them apart from other companies? They can machine titanium parts faster than anyone else out there!
Leveraging 5-Axis Precision for Automotive Innovation
When it comes down to cars or trucks ; they wouldn’t be able make lightweight electric vehicles without taking advantage on some serious five aXis mill cutting power. You need those tight tolerances , especially around areas where the highest stress levels occur during operation such as suspension points etc . This means having an accurate model design software program is necessary in order to properly understand how to make things like this work well within each other . That being said though ; once we’ve got one part figured out – everything else follows suit pretty quickly because there aren’t many ways around those types of constraints.
Reference sources
Annotated Bibliography on 5 Axis CNC Machining Centers
1. Modern Machine Shop Magazine – Online Article
- Title: “The Benefits of 5-Axis CNC Machining”
- URL: https://www.mmsonline.com/articles/the-benefits-of-5-axis-cnc-machining
- Summary: This article from Modern Machine Shop, a leading source for manufacturing news, product information, and machining techniques, provides a comprehensive overview of the advantages that 5-axis CNC machining centers offer over traditional 3-axis systems. It discusses increased precision, reduced setup time, and the ability to handle complex parts with fewer operations. The credibility of the source is high due to its industry-focused audience and expert contributors who have deep knowledge in machining technologies.
- Relevance: Perfect for readers looking to understand the operational and business benefits of upgrading to a 5-axis CNC system.
2. Journal of Manufacturing Science and Engineering – Academic Journal
- Title: “Advancements in 5-Axis CNC Machining Technologies”
- URL: Not directly available due to academic paywalls but can be accessed through academic databases like JSTOR or ScienceDirect.
- Summary: This peer-reviewed article explores recent technological advancements in 5-axis CNC machining and their implications for manufacturing efficiency, product quality, and design innovation. It includes case studies and research findings on the performance and capabilities of modern 5-axis machines. The rigorous review process and the academic nature of the publication ensure the accuracy and reliability of the information presented.
- Relevance: Ideal for professionals and students seeking an in-depth technical understanding of 5-axis CNC machining technologies based on current research.
3. Haas Automation Inc. – Manufacturer Website
- Title: “UMC Series: Universal Machining Centers”
- URL: https://www.haascnc.com/machines/vertical-mills/universal-machining-centers.html
- Summary: Haas Automation, one of the leading manufacturers of CNC machines globally, offers detailed specifications, features, and benefits of their UMC Series 5-axis CNC machining centers on their website. The site provides insights into the capabilities, configurations, and applications of their latest models. It also includes video tutorials and customer testimonials, offering both technical details and practical perspectives on using 5-axis CNC machines in various industries.
- Relevance: This source is invaluable for anyone interested in the specifications, applications, and real-world performance of 5-axis CNC machining centers from a prominent manufacturer.
These sources collectively offer a well-rounded understanding of 5-axis CNC machining centers, covering theoretical advancements, practical benefits, and specific machine options. They cater to a wide audience, from those new to the concept of 5-axis CNC machining to professionals seeking to deepen their technical knowledge or evaluate specific machine models.
Frequently Asked Questions (FAQs)
Q: How does a 3-axis or 3+2 machining system differ from a 5-axis CNC machining center?
A: A five-axis CNC machining center can move the cutting tool along any of the five axes at once so as to produce very complex parts with greater accuracy, whereas a three-axis machine operates on three planes (X, Y, Z) and cannot rotate the piece for additional angles without being manually repositioned and a 3+2 machining system allows positional five-axis machining, but does not perform five simultaneous axis movements, impacting the speed and intricacy with which a part can be machined.
Q: What is achieved by using a 5-axis solution in terms of precision and efficiency during production?
A: The utilization of a 5-axis solution saves time and increases accuracy by enabling one setup to machine all sides of complex parts. This eliminates multiple setups and manual repositioning, reducing error opportunities. Moreover, since tools can move along five axes at the same time; therefore more efficient tool paths are created which reduces machining time while increasing throughput in various sectors.
Q: Can vertical as well as horizontal machining orientations both be worked on by a 5-axis CNC machine?
A: Yes, a 5-axis CNC machine has flexibility that allows it operate either vertically or horizontally. Rotary axes provide this ability by making it possible for machine tools to approach workpieces from virtually any direction. With such dual capabilities; shops can benefit from both vertical machining center advantages and horizontal milling efficiencies using one equipment thereby optimizing their production processes.
Q: What is the function of fourth plus fifth axes in a 5-axis CNC machining centre?
A: Fourth and fifth axes enable movement around multiple axes simultaneously when machining complex geometries at different angles without resetting components – this greatly increases versatility for creating intricate high-accuracy parts
Q: How do automation and skilled labor intersect in the operation of 5-axis CNC machining centers?
A: Automation in 5-axis CNC machining centers streamlines production, reducing the reliance on manual labor for repetitive tasks and increasing consistency and speed. However, skilled labor plays an essential role in programming, setup, and oversight. Machinists with specialized knowledge in five-axis work are critical for optimizing the capabilities of the machinery, from tool path programming to the complex fixturing and adjustment required for high-precision jobs. The combination of automation and skilled labor maximizes efficiency and quality.
Q: What factors should a machine company consider when they want to install five-axis CNC machining solution?
A: In implementing five-axis computer numerical control (CNC) machining solutions, many things need to be put into consideration by the machine company. Among these are the potential complexity of parts that will be produced; skill levels of workers; upfront investments against long-term efficiencies and capabilities gained over time. It is also important to consider whether increased precision and capability align with production goals vis-a-vis customer needs. Additionally this means evaluating space requirements for such advanced machines as well as any necessary adjustments in workflow or production planning.
Q: To what extent does simultaneous 5-axis capability affect cutting tool selection and life?
A: Cutting tools’ choices and lifespan are greatly influenced by the ability to work on several planes simultaneously. The multi-directional movement, which allows approaching materials from almost every direction, makes it possible to have the most efficient paths for tools, thus reducing their wear out through equal distribution of loads on them. Furthermore, this feature permits the application of compact, rigid, shorter, lengthened cutting instruments, thereby reducing vibrations produced during operations, hence improving accuracy levels achieved while working. Therefore, one must select appropriate cutters depending on type of workpiece material being machined along with required operations so as take full advantage of prolonged existence for tools within centers supporting five axes milling.
Q: Are there some industries that benefit more than others when they adopt 5-axis CNC machining centers?
A: Although 5-axis CNC machining centers can be adapted across various fields due to their versatility; however those areas dealing with complex shapes, especially compound angles, will find them very useful because they require high precision while making such components. These include but are not limited to the aerospace industry, where there is a need for creating parts having intricate designs involving different planes at once; the automotive sector, manufacturing unique vehicles with non-linear features like car body kits or spoilers, etc.; and medical device fabrication, which involves producing sophisticated implants having multiple curved surfaces among others. Finally, the die/mold production industry also needs this technology most because many molds are made by simultaneously cutting materials on different sides.
